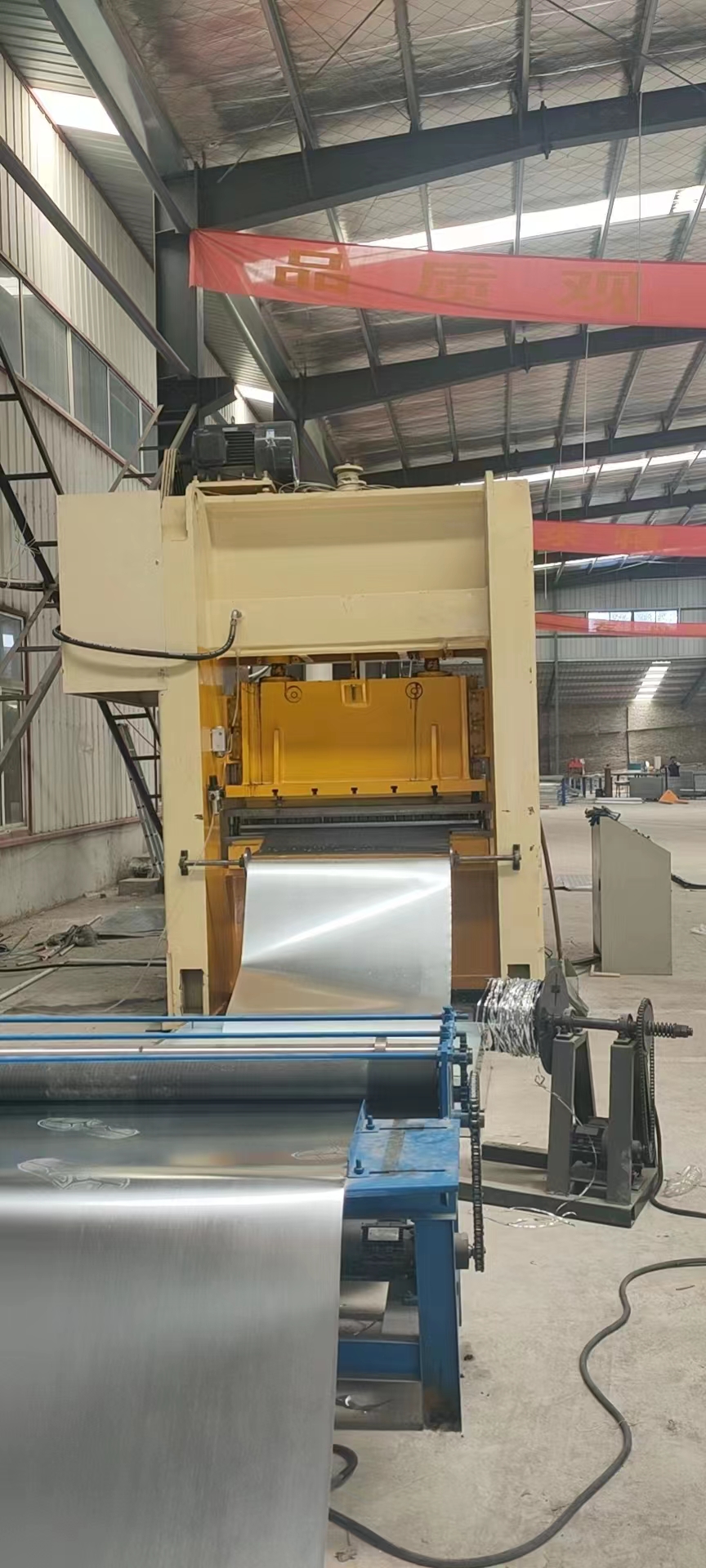

Diaozhuo Ckw-1250 Max Width 1250 Perforated Metal Machine
The perforated metal machine also called punching machine.The independent research and development of CNC perforated metal machine is composed of CNC programming system, deep throat punching machine, mold and feeding platform. The feeding platform is accurate in positioning, simple in operation and accurate in feeding. The programming system is simple to program, easy to operate and equipped with protection. The electric cabinet can play a very good protective effect on the system computer, and is beautiful and generous. The punching machine runs stably, the mold loss is small, and it is durable.
The perforated metal machine can punch various hole type: rectangular hole, square hole, diamond hole, round hole, hexagonal hole, cross hole, triangular hole, oblong hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, pentagonal star hole, no regular holes, drum holes, etc.
There are specifications about punching press in the sheet for reference:
| Model | DZ31G-80 | DZ31G-125 | DZ31G-160 | DZ31G-200 |
| Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
| Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
| Slide Stroke(MM) | 30 | 30 | 30 | 30 |
| SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
| Max Die Height(MM) | 360 | 400 | 400 | 420 |
| Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
| Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
| Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
| Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
| Motor Power(KW) | 11 | 18.5 | 22 | 30 |
| Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
| Net Weight(KG) | 9000 | 11500 | 15000 | 19000 |
